• Høj præcision og høj effektivitet kan opnå højkvalitets behandlingsoverflade af kobberelektroder.

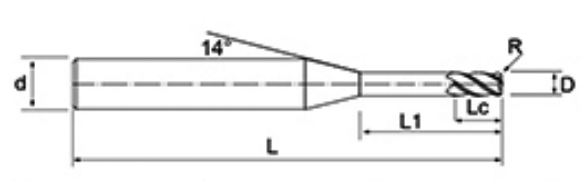

| Nej. | Diameter D | R Vinkel R | Fløjte Længde Lc | Effektiv længde L1 | Samlet længde L | Shank Dia d | Klingetælling F |
| NNX-4RSP-D1-L4 | 1 | 0.1 | 1.5 | 4 | 50 | 4 | 2 |
| NNX-4RSP-D1-L6 | 1 | 0.1 | 1.5 | 6 | 50 | 4 | 2 |
| NNX-4RSP-D1-L8 | 1 | 0.1 | 1.5 | 8 | 50 | 4 | 2 |
| NNX-4RSP-D1-L10 | 1 | 0.1 | 1.5 | 10 | 50 | 4 | 2 |
| NNX-4RSP-D1-L12 | 1 | 0.1 | 1.5 | 12 | 50 | 4 | 2 |
| NNX-4RSP-D1-L14 | 1 | 0.1 | 1.5 | 14 | 50 | 4 | 2 |
| NNX-4RSP-D1-L16 | 1 | 0.1 | 1.5 | 16 | 50 | 4 | 2 |
| NNX-4RSP-D1-L18 | 1 | 0.1 | 1.5 | 18 | 50 | 4 | 2 |
| NNX-4RSP-D1-L20 | 1 | 0.1 | 1.5 | 20 | 50 | 4 | 2 |
| NNX-4RSP-D1-L4 | 1 | 0.2 | 1.5 | 4 | 50 | 4 | 2 |
| NNX-4RSP-D1-L6 | 1 | 0.2 | 1.5 | 6 | 50 | 4 | 2 |
| NNX-4RSP-D1-L8 | 1 | 0.2 | 1.5 | 8 | 50 | 4 | 2 |
| NNX-4RSP-D1-L10 | 1 | 0.2 | 1.5 | 10 | 50 | 4 | 2 |
| NNX-4RSP-D1-L12 | 1 | 0.2 | 1.5 | 12 | 50 | 4 | 2 |
| NNX-4RSP-D1-L14 | 1 | 0.2 | 1.5 | 14 | 50 | 4 | 2 |
| NNX-4RSP-D1-L16 | 1 | 0.2 | 1.5 | 16 | 50 | 4 | 2 |
| NNX-4RSP-D1-L18 | 1 | 0.2 | 1.5 | 18 | 50 | 4 | 2 |
| NNX-4RSP-D1-L20 | 1 | 0.2 | 1.5 | 20 | 50 | 4 | 2 |
| NNX-4RSP-D1.5-L6 | 1.5 | 0.1 | 2.3 | 6 | 50 | 4 | 2 |
| NNX-4RSP-D1.5-L8 | 1.5 | 0.1 | 2.3 | 8 | 50 | 4 | 2 |
| NNX-4RSP-D1.5-L10 | 1.5 | 0.1 | 2.3 | 10 | 50 | 4 | 2 |
| NNX-4RSP-D1.5-L12 | 1.5 | 0.1 | 2.3 | 12 | 50 | 4 | 2 |
| NNX-4RSP-D1.5-L14 | 1.5 | 0.1 | 2.3 | 14 | 50 | 4 | 2 |
| NNX-4RSP-D1.5-L16 | 1.5 | 0.1 | 2.3 | 16 | 50 | 4 | 2 |
| NNX-4RSP-D1.5-L18 | 1.5 | 0.1 | 2.3 | 18 | 50 | 4 | 2 |
| NNX-4RSP-D1.5-L20 | 1.5 | 0.1 | 2.3 | 20 | 50 | 4 | 2 |
| NNX-4RSP-D1.5-L6 | 1.5 | 0.2 | 2.3 | 6 | 50 | 4 | 2 |
| NNX-4RSP-D1.5-L8 | 1.5 | 0.2 | 2.3 | 8 | 50 | 4 | 2 |
| NNX-4RSP-D1.5-L10 | 1.5 | 0.2 | 2.3 | 10 | 50 | 4 | 2 |
| NNX-4RSP-D1.5-L12 | 1.5 | 0.2 | 2.3 | 12 | 50 | 4 | 2 |
| NNX-4RSP-D1.5-L14 | 1.5 | 0.2 | 2.3 | 14 | 50 | 4 | 2 |
| NNX-4RSP-D1.5-L16 | 1.5 | 0.2 | 2.3 | 16 | 50 | 4 | 2 |
| NNX-4RSP-D1.5-L18 | 1.5 | 0.2 | 2.3 | 18 | 50 | 4 | 2 |
| NNX-4RSP-D1.5-L20 | 1.5 | 0.2 | 2.3 | 20 | 50 | 4 | 2 |
| NNX-4RSP-D2-L6 | 2 | 0.1 | 3 | 6 | 50 | 4 | 2 |
| NNX-4RSP-D2-L8 | 2 | 0.1 | 3 | 8 | 50 | 4 | 2 |
| NNX-4RSP-D2-L10 | 2 | 0.1 | 3 | 10 | 50 | 4 | 2 |
| NNX-4RSP-D2-L12 | 2 | 0.1 | 3 | 12 | 50 | 4 | 2 |
| NNX-4RSP-D2-L14 | 2 | 0.1 | 3 | 14 | 50 | 4 | 2 |
| NNX-4RSP-D2-L16 | 2 | 0.1 | 3 | 16 | 50 | 4 | 2 |
| NNX-4RSP-D2-L18 | 2 | 0.1 | 3 | 18 | 50 | 4 | 2 |
| NNX-4RSP-D2-L20 | 2 | 0.1 | 3 | 20 | 50 | 4 | 2 |
| NNX-4RSP-D2-L6 | 2 | 0.2 | 3 | 6 | 50 | 4 | 4 |
| NNX-4RSP-D2-L8 | 2 | 0.2 | 3 | 8 | 50 | 4 | 4 |
| NNX-4RSP-D2-L10 | 2 | 0.2 | 3 | 10 | 50 | 4 | 4 |
| NNX-4RSP-D2-L12 | 2 | 0.2 | 3 | 12 | 50 | 4 | 4 |
| NNX-4RSP-D2-L14 | 2 | 0.2 | 3 | 14 | 50 | 4 | 4 |
| NNX-4RSP-D2-L16 | 2 | 0.2 | 3 | 16 | 50 | 4 | 4 |
| NNX-4RSP-D2-L18 | 2 | 0.2 | 3 | 18 | 50 | 4 | 4 |
| NNX-4RSP-D2-L20 | 2 | 0.2 | 3 | 20 | 50 | 4 | 4 |
| NNX-4RSP-D2-L6 | 2 | 0.5 | 3 | 6 | 50 | 4 | 4 |
| NNX-4RSP-D2-L8 | 2 | 0.5 | 3 | 8 | 50 | 4 | 4 |
| NNX-4RSP-D2-L10 | 2 | 0.5 | 3 | 10 | 50 | 4 | 4 |
| NNX-4RSP-D2-L12 | 2 | 0.5 | 3 | 12 | 50 | 4 | 4 |
| NNX-4RSP-D2-L14 | 2 | 0.5 | 3 | 14 | 50 | 4 | 4 |
| NNX-4RSP-D2-L16 | 2 | 0.5 | 3 | 16 | 50 | 4 | 4 |
| NNX-4RSP-D2-L18 | 2 | 0.5 | 3 | 18 | 50 | 4 | 4 |
| NNX-4RSP-D2-L20 | 2 | 0.5 | 3 | 20 | 50 | 4 | 4 |
| NNX-4RSP-D3-L10 | 3 | 0.1 | 4.5 | 10 | 50 | 4 | 4 |
| NNX-4RSP-D3-L12 | 3 | 0.1 | 4.5 | 12 | 50 | 4 | 4 |
| NNX-4RSP-D3-L14 | 3 | 0.1 | 4.5 | 14 | 50 | 4 | 4 |
| NNX-4RSP-D3-L16 | 3 | 0.1 | 4.5 | 16 | 50 | 4 | 4 |
| NNX-4RSP-D3-L18 | 3 | 0.1 | 4.5 | 18 | 50 | 4 | 4 |
| NNX-4RSP-D3-L20 | 3 | 0.1 | 4.5 | 20 | 50 | 4 | 4 |
| NNX-4RSP-D3-L10 | 3 | 0.2 | 4.5 | 10 | 50 | 4 | 4 |
| NNX-4RSP-D3-L12 | 3 | 0.2 | 4.5 | 12 | 50 | 4 | 4 |
| NNX-4RSP-D3-L14 | 3 | 0.2 | 4.5 | 14 | 50 | 4 | 4 |
| NNX-4RSP-D3-L16 | 3 | 0.2 | 4.5 | 16 | 50 | 4 | 4 |
| NNX-4RSP-D3-L18 | 3 | 0.2 | 4.5 | 18 | 50 | 4 | 4 |
| NNX-4RSP-D3-L20 | 3 | 0.2 | 4.5 | 20 | 50 | 4 | 4 |
| NNX-4RSP-D3-L10 | 3 | 0.5 | 4.5 | 10 | 50 | 4 | 4 |
| NNX-4RSP-D3-L12 | 3 | 0.5 | 4.5 | 12 | 50 | 4 | 4 |
| NNX-4RSP-D3-L14 | 3 | 0.5 | 4.5 | 14 | 50 | 4 | 4 |
| NNX-4RSP-D3-L16 | 3 | 0.5 | 4.5 | 16 | 50 | 4 | 4 |
| NNX-4RSP-D3-L18 | 3 | 0.5 | 4.5 | 18 | 50 | 4 | 4 |
| NNX-4RSP-D3-L20 | 3 | 0.5 | 4.5 | 20 | 50 | 4 | 4 |
| NNX-4RSP-D3-L12 | 3 | 0.2 | 4.5 | 12 | 60 | 6 | 4 |
| NNX-4RSP-D3-L14 | 3 | 0.2 | 4.5 | 14 | 60 | 6 | 4 |
| NNX-4RSP-D3-L16 | 3 | 0.2 | 4.5 | 16 | 60 | 6 | 4 |
| NNX-4RSP-D3-L18 | 3 | 0.2 | 4.5 | 18 | 60 | 6 | 4 |
| NNX-4RSP-D3-L20 | 3 | 0.2 | 4.5 | 20 | 60 | 6 | 4 |
| NNX-4RSP-D3-L25 | 3 | 0.2 | 4.5 | 25 | 60 | 6 | 4 |
| NNX-4RSP-D3-L12 | 3 | 0.5 | 4.5 | 12 | 60 | 6 | 4 |
| NNX-4RSP-D3-L14 | 3 | 0.5 | 4.5 | 14 | 60 | 6 | 4 |
| NNX-4RSP-D3-L16 | 3 | 0.5 | 4.5 | 16 | 60 | 6 | 4 |
| NNX-4RSP-D3-L18 | 3 | 0.5 | 4.5 | 18 | 60 | 6 | 4 |
| NNX-4RSP-D3-L20 | 3 | 0.5 | 4.5 | 20 | 60 | 6 | 4 |
| NNX-4RSP-D3-L25 | 3 | 0.5 | 4.5 | 25 | 60 | 6 | 4 |
| NNX-4RSP-D3-L12 | 3 | 0.2 | 4.5 | 12 | 75 | 6 | 4 |
| NNX-4RSP-D3-L14 | 3 | 0.2 | 4.5 | 14 | 75 | 6 | 4 |
| NNX-4RSP-D3-L16 | 3 | 0.2 | 4.5 | 16 | 75 | 6 | 4 |
| NNX-4RSP-D3-L18 | 3 | 0.2 | 4.5 | 18 | 75 | 6 | 4 |
| NNX-4RSP-D3-L20 | 3 | 0.2 | 4.5 | 20 | 75 | 6 | 4 |
| NNX-4RSP-D3-L25 | 3 | 0.2 | 4.5 | 25 | 75 | 6 | 4 |
| NNX-4RSP-D3-L30 | 3 | 0.2 | 4.5 | 30 | 75 | 6 | 4 |
| NNX-4RSP-D3-L12 | 3 | 0.5 | 4.5 | 12 | 75 | 6 | 4 |
| NNX-4RSP-D3-L14 | 3 | 0.5 | 4.5 | 14 | 75 | 6 | 4 |
| NNX-4RSP-D3-L16 | 3 | 0.5 | 4.5 | 16 | 75 | 6 | 4 |
| NNX-4RSP-D3-L18 | 3 | 0.5 | 4.5 | 18 | 75 | 6 | 4 |
| NNX-4RSP-D3-L20 | 3 | 0.5 | 4.5 | 20 | 75 | 6 | 4 |
| NNX-4RSP-D3-L25 | 3 | 0.5 | 4.5 | 25 | 75 | 6 | 4 |
| NNX-4RSP-D3-L30 | 3 | 0.5 | 4.5 | 30 | 75 | 6 | 4 |
| NNX-4RSP-D4-L16 | 4 | 0.2 | 6 | 16 | 60 | 6 | 4 |
| NNX-4RSP-D4-L20 | 4 | 0.2 | 6 | 20 | 60 | 6 | 4 |
| NNX-4RSP-D4-L25 | 4 | 0.2 | 6 | 25 | 60 | 6 | 4 |
| NNX-4RSP-D4-L16 | 4 | 05 | 6 | 16 | 60 | 6 | 4 |
| NNX-4RSP-D4-L20 | 4 | 0.5 | 6 | 20 | 60 | 6 | 4 |
| NNX-4RSP-D4-L25 | 4 | 0.5 | 6 | 25 | 60 | 6 | 4 |
| NNX-4RSP-D4-L16 | 4 | 0.2 | 6 | 16 | 75 | 6 | 4 |
| NNX-4RSP-D4-L20 | 4 | 0.2 | 6 | 20 | 75 | 6 | 4 |
| NNX-4RSP-D4-L25 | 4 | 0.2 | 6 | 25 | 75 | 6 | 4 |
| NNX-4RSP-D4-L30 | 4 | 0.2 | 6 | 30 | 75 | 6 | 4 |
| NNX-4RSP-D4-L35 | 4 | 0.2 | 6 | 35 | 75 | 6 | 4 |
| NNX-4RSP-D4-L16 | 4 | 0.5 | 6 | 16 | 75 | 6 | 4 |
| NNX-4RSP-D4-L20 | 4 | 0.5 | 6 | 20 | 75 | 6 | 4 |
| NNX-4RSP-D4-L25 | 4 | 0.5 | 6 | 25 | 75 | 6 | 4 |
| NNX-4RSP-D4-L30 | 4 | 0.5 | 6 | 30 | 75 | 6 | 4 |
| NNX-4RSP-D4-L35 | 4 | 0.5 | 6 | 35 | 75 | 6 | 4 |
| Værktøjsserie | Diameter | Radius | Hjørne radius | Fløjte længde | Effektiv længde | Samlet længde | Shank Dia | |||
| D | R | CR | Lc | L1 | L | d | ||||
| NNX hårdmetal endefræsere til kobberelektrode | D0,1~D0,9 | 0 -0,005 | R0,05~R2 | /-0,005 | CR0,05~CR0,5 | /-0,005 | 0 0.3 | 0 0.3 | 0.5 -0,5 | h5 |
| D1~D3,5 | 0 -0,005 | |||||||||
| D4~D10 | -0,003 -0,015 | R3~R5 | /-0,005 | CR1.0~CR3.0 | /-0,008 | 0 0.5 | 0 0.5 | |||
| D12~D20 | -0,003 -0,018 | R6~R10 | /-0,008 | |||||||

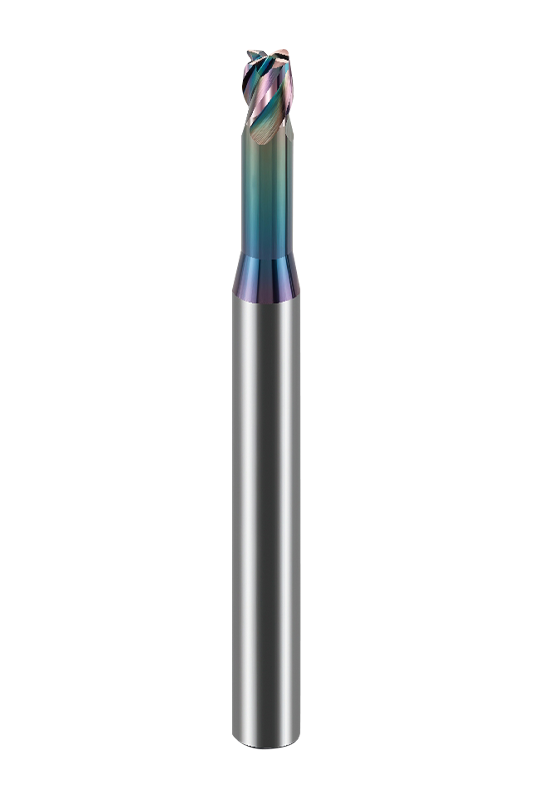

NNX-4RSP 4 rille dyb rille rundnæse endefræsere til kobberelektrodebearbejdning tilbyder en bred vifte af størrelsesmuligheder, fra lille diameter til stor diameter, fra kort kantlængde til lang kantlængde, hver specifikation er omhyggeligt designet til at imødekomme behovene ved forskellige arbejdsforhold. Uanset om det er finbearbejdning eller skæring i stort areal, giver den fleksible kombination af forskellige undermodeller brugerne mulighed for frit at vælge det bedst egnede værktøj for at opnå effektiv og nøjagtig kobberelektrodebehandling.
Det specielle dybe rillede rundnæsedesign forbedrer ikke kun værktøjets stivhed, men optimerer også kraftfordelingen af skærkanten, hvilket effektivt reducerer vibrationer og grater under forarbejdningen. Det unikke rilledesign reducerer skæremodstanden, sikrer stabil skæring af kobberelektrodematerialer ved høje hastigheder og forbedrer overfladefinishen.
Værktøjet bruger (0,2μm) ultrafint partikelsubstrat med den nyeste DLC-belægningsteknologi, som har fremragende slidstyrke og ekstremt lav friktionskoefficient, hvilket gør det særligt overlegent i kobberelektrodebehandling. Kombineret med ultrafin slibeteknologi og klinge med ultra-lav ruhed, reducerer det i høj grad værktøjets vedhæftningsproblem og forbedrer levetiden og forarbejdningskonsistensen.
Virksomhedsetablering
Medarbejdere

Changzhou Maton Tools Co.,Ltd. is located in the economically developed Yangtze River Delta region.The factory is located in XixiashuHigh-tech Development Zone,a well-known tool town in China. We are 4 fløjte med dyb rille rund endefræser til kobberelektrodebearbejdning Suppliers.
Magotantools take the ISO9001 quality system as the standard,under the guidanceof the business philosophy of"zero defect in products"and"zero distance in service",based on the spirit of"integrity","unity"and"exploita- tion",and follow a fair and just company style for management.Product production adopts five-axisand six-axis CNC grinding and machining centers from Germany,Switzerland,Japan,etc.,and is equipped with high-precision testing equipment such as Germany,Japan,and China,so as to meet the needs of production with high quality and quantity.
The company continuously develops various high-performance CNC tools, and has won various national awards. Professional 4 fløjte med dyb rille rund endefræser til kobberelektrodebearbejdning Factory. More than 10 patents,the company's products are mainly used in the defense industry, aerospace industry,automotive industry,electronic products and molds and other fields.
The company's various products are recognized and favored by well-known domestic companies.With infinite technology,infinite creation,and pursuit of excellence,Magotan tools will write future prosperity and dreams with more extraordinary confidence and high-quality quality.
Vi svarer dig inden for 12 timer efter at have modtaget henvendelsen på hverdage.
Vi er producenter, vi producerer og sælger selv.
We mainly produce tungsten steel milling cutters, drill bits and other hard alloy tools. Professional 4 fløjte med dyb rille rund endefræser til kobberelektrodebearbejdning Suppliers.
Vores produkter dækker næsten hele formindustrien, forsvarsindustrien, rumfartsindustrien, bilindustrien, elektroniske produkter og andre områder.
Yes, our main focus is on customized products. We develop and produce products based on the drawings or samples provided by customers. Custom 4 fløjte med dyb rille rund endefræser til kobberelektrodebearbejdning.
We have over 30 units of WALTER from Germany, Makino from Japan, ROLLMATIC from Switzerland, and TTB from Switzerland, with an annual output value of 80 million RMB. We are 4 fløjte med dyb rille rund endefræser til kobberelektrodebearbejdning Factory
For det første udfører vi efter hver proces tilsvarende inspektioner. For det endelige produkt vil vi udføre 100 % fuld inspektion i henhold til kundens krav og internationale standarder;
Så har vi det avancerede og komplette testudstyr i topklasse i branchen, såsom spektralanalysatorer, metallografiske mikroskoper osv., som kan sikre stabiliteten og konsistensen af skærende værktøjer, samtidig med at kundernes højpræcisionstestkrav til skærende værktøjer opfyldes.
Når du citerer, vil vi bekræfte transaktionsmetoden, FOB, CIF, CNF eller andre muligheder med dig. Når vi producerer i løs vægt, foretager vi normalt 30 % forudbetaling først, og betaler derefter restbeløbet ved fremvisning af konnossementet. Vi bruger for det meste T/T som betalingsmetode, men L/C er også acceptabelt.
